CC600/CC6000: Enter Recovery Mode

« Go Back

Information


Issue / QuestionWhat is the key sequence to enter Android recovery mode for CC600 and CC6000?
Applicable ToCC600 or CC6000
Resolution / Answer

To enter recovery mode in CC600 or CC6000 using device keys/buttons, you can use the following two options:

Option 1:

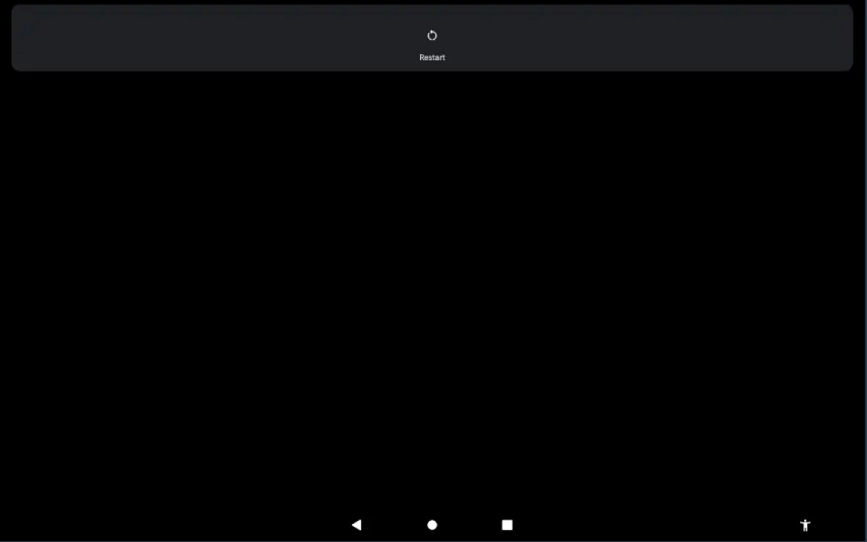

  • Press and hold the Reset button until the Restart option appears.
  • Release the Reset button when the Restart option appears. The device restarts if the button is held down for longer than 3 seconds.
  • Touch Restart.

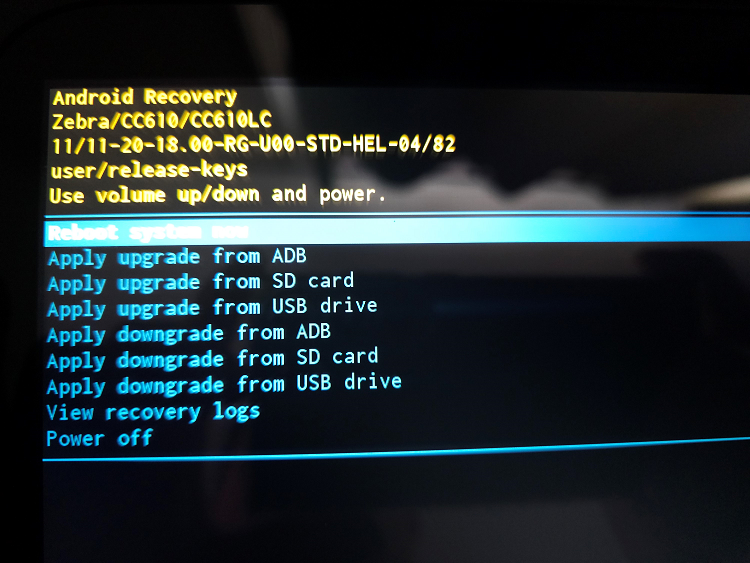

  • Press and hold the Number 1 button. The System Recovery screen appears.
  • To navigate, press the Number 2 button. To select an option/action, press Number 1.


Option 2:

  • Disconnect and connect power to the device.
  • Press and hold the Number 1 button before the Zebra logo splash screen appears.
  • The System Recovery screen appears.
  • To navigate, press the Number 2 button. To select an option/action, press Number 1.

Helpful Information:

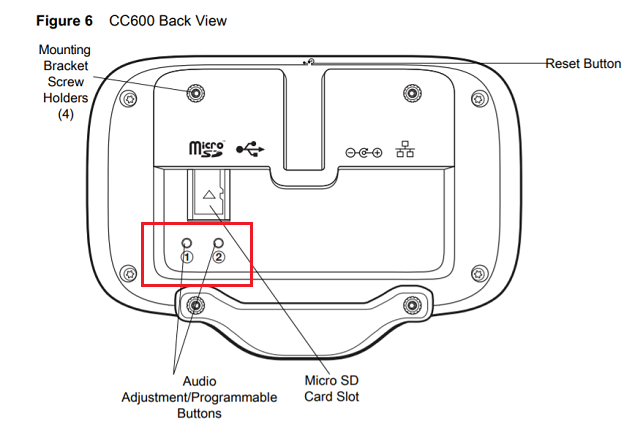

CC600 back view.png

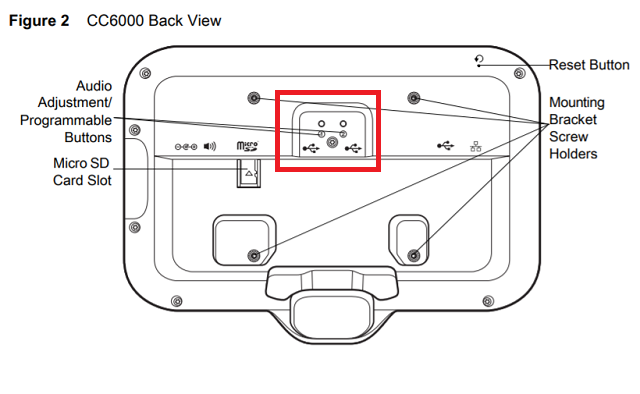

CC6000 back view.png
