Media and Ribbon Identification

See links below for examples of different Media Types:

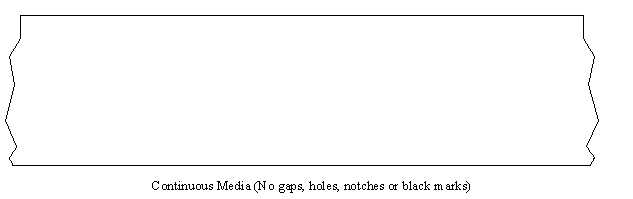

Continuous Media
The media sensor does not detect label length and will only monitor for a media out or paper out condition. There are no top-of-form indicators with Continuous Media.

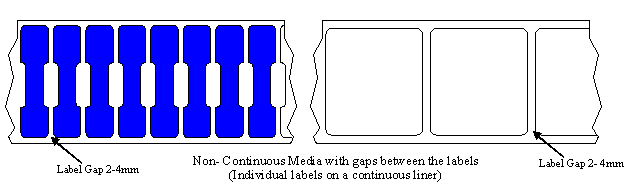

Non-Continuous Web
This media is referred to as the Non-Continuous Web. Select the sensor that is used for Gap or Web media.

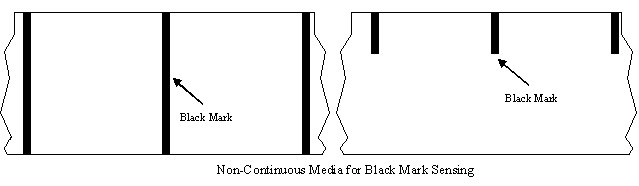

Non-Continuous Mark
(Black Mark Sensor) Use the reflective sensor to sense the black mark.



Non-Continuous Notched or Hole
Use the gap or web sensor positioning the sensor over the notch or hole.
