Issue / QuestionWhat are the steps to transmit ZPL code to my printer?
What tools can I utilize for sending ZPL to my printer?"
What are the suitable tools for transferring ZPL to my printer?"
Can you guide me on how to dispatch the ZPL code to my printer?
Which tools would you recommend for this task?
What's the procedure to send ZPL code to my printer? Could you suggest any tools for this purpose?
Applicable ToZPL Printers
Resolution / Answer

Sending ZPL Commands to a Printer: Methods and Instructions

Here are three methods to send ZPL commands to a printer:


Instructions for ZDesigner Driver v5:

  1. Open PC settings.
  2. Find Printers and Scanners.
  3. Select your printer and click Manage.

Image 1: PC Settings

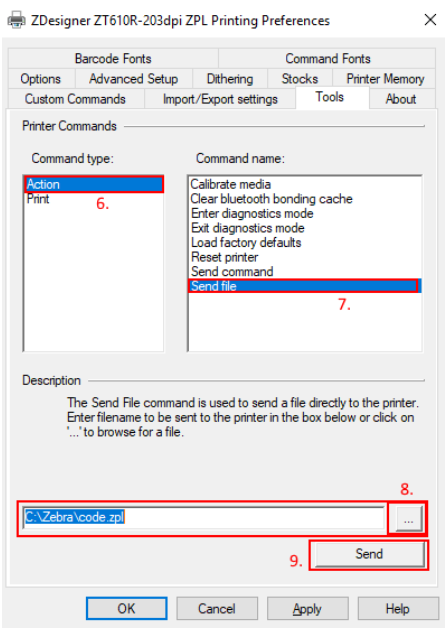

  1. Select Printing Preferences.
  2. Go to the Tools tab.

Image 2: Printing Preferences

  1. Select Action.
  2. Choose Send file.
  3. Click the three dots button and select the file to send.
  4. Click Send to send the file to the printer.


For ZDesigner Driver v10:

  1. Open PC settings.
  2. Find Printers and Scanners.
  3. Select your printer and click Manage.
  4. Choose Printer Properties.
  5. Click Driver Settings.

Image 3: Printer Properties

  1. Click Settings on the left bar.
  2. Select Send file.
  3. Click the three dots and select the saved file.
  4. Click Send.


NOTE: ZPL commands can override printer settings.
Refer to the ZPL II, ZBI 2, Set-Get-Do, Mirror, WML Programming Guide for detailed descriptions of ZPL commands.
