Windows 10 Bluetooth Setup with Zebra Printers

« Go Back

Information


Issue / QuestionHow to setup Bluetooth for Zebra Printers on Windows 10?
Applicable ToZebra Printers, Windows 10, ZDesigner Driver
Resolution / Answer

Procedure:



NOTE Ensure that you have the ZDesigner driver installed and available. Refer to this article: Installing the Zebra Printer Driver on a Windows PC.



  1. With the driver installed, connect your Zebra mobile printer via USB and make sure that you can communicate with the printer.
Plug and Play from Windows 10 will automatically create a ZDesigner Driver instance for your printer with a USB port.


NOTE Download and install the Zebra Setup Utilities (ZSU). You can access the following link for details: Bluetooth Setup using the Zebra Setup Utility.

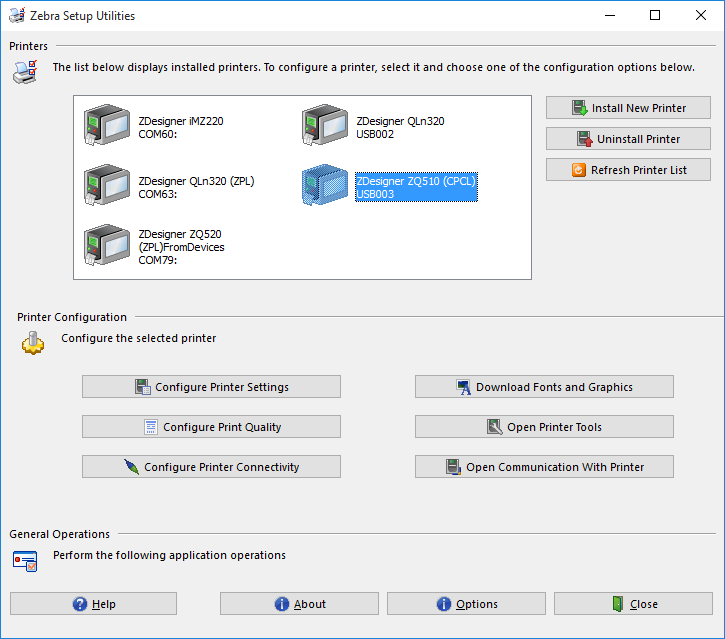

  1. Once you have started the ZSU, select the ZDesigner driver for your USB-connected Zebra printer and choose Configure Printer Connectivity.

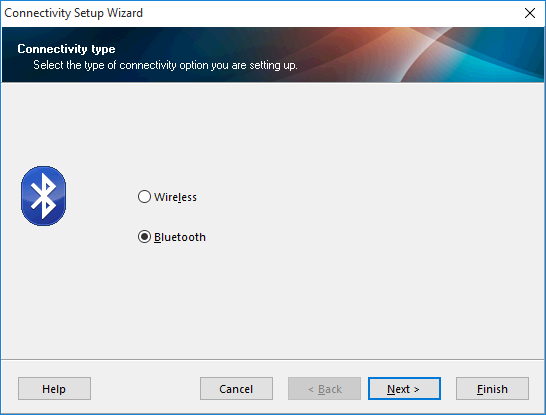

  1. Select Bluetooth and click Next.

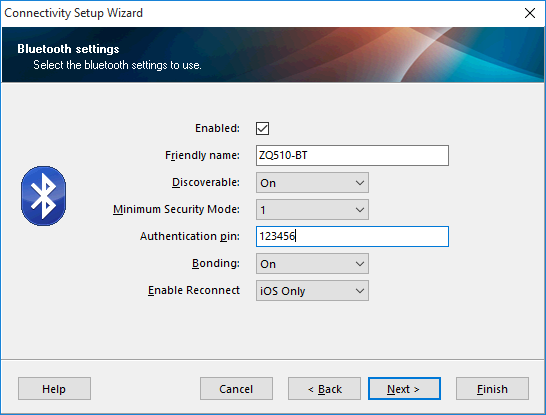

  1. Enter a Friendly name and an Authentication pin number of your choice. You can leave the default values for the remaining Bluetooth settings and click Next.
  1. Click Next.

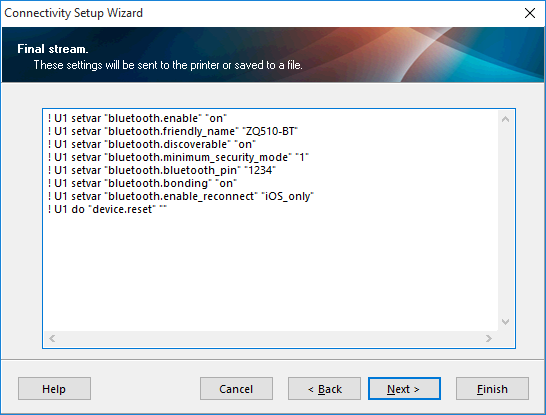

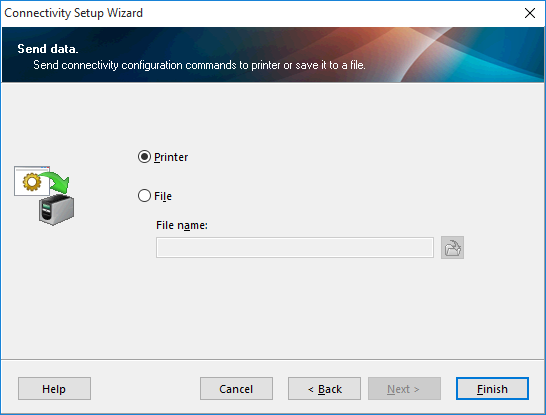

  1. Unless you want to capture the settings to a file, leave this option set as Printer and click Finish.


(In the case of a ZQ510, the printer displays RESTARTING after receiving the Bluetooth settings).
You can now close the ZSU and disconnect the USB cable from the printer.

  1. In Windows 10 Search the web and Windows box, type Bluetooth, and select Bluetooth Settings

After a few moments, Windows should list your Zebra Bluetooth printer.

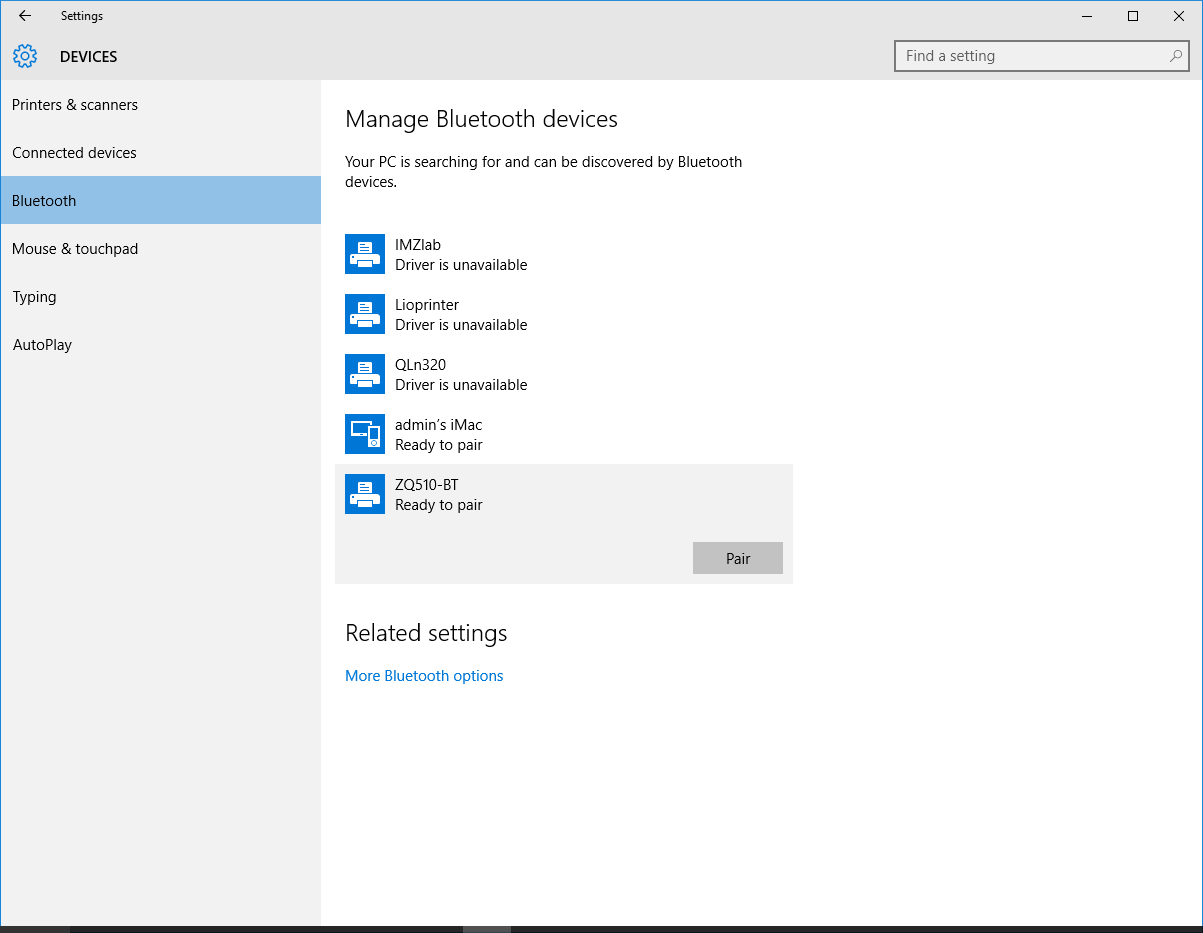

  1. Highlight the printer with the Friendly name you entered in the Zebra Setup Utilities (ZSU) and click Pair.

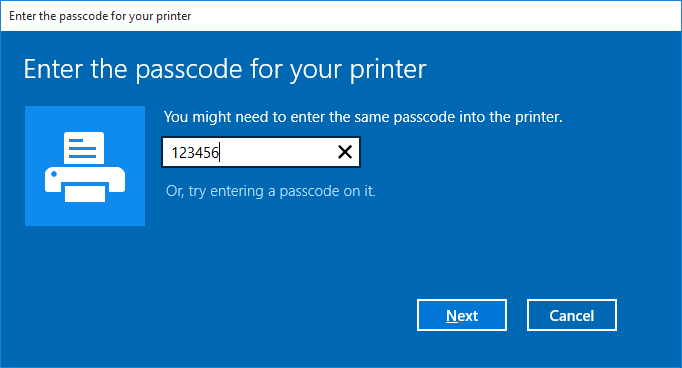

  1. When prompted, enter the passcode created in the Zebra Setup Utilities (ZSU) and click Next.

The screen may quickly flash Connected but then will show as Driver is unavailable.

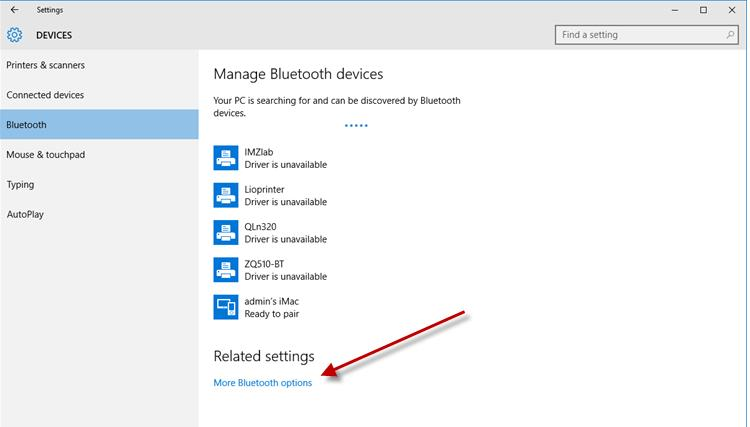

  1. Click More Bluetooth options


IMPORTANT! Please ensure that you follow the upcoming instructions and select the COM port created by Windows. Failure to choose the correct COM port associated with Windows 10 will lead to errors and prevent the process from working correctly.

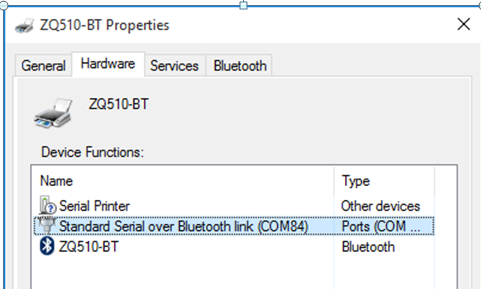

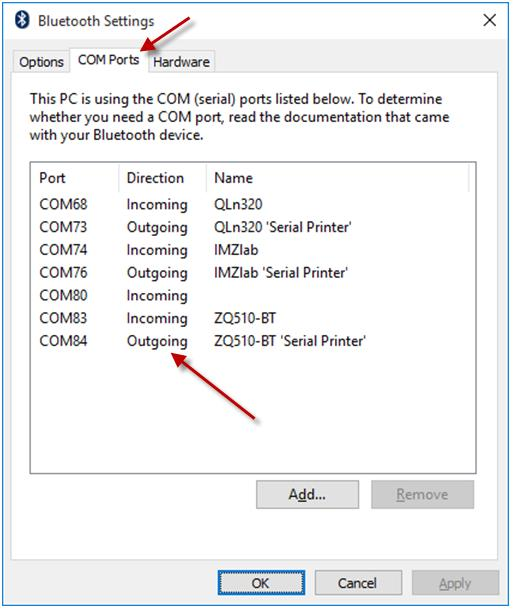

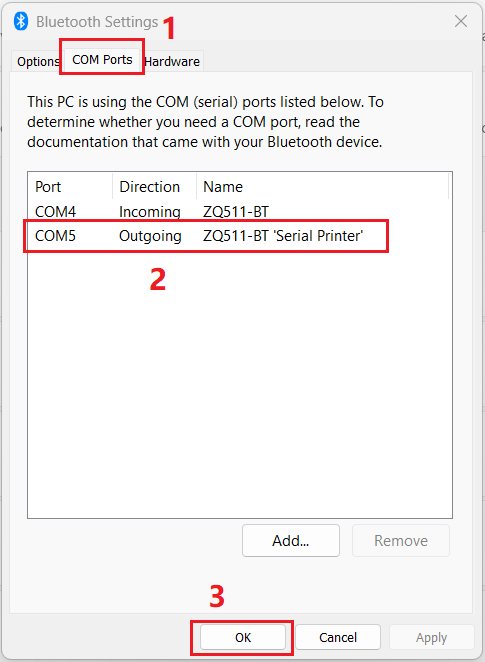

  1. Click the COM Ports tab and confirm the Outgoing port listed for the Zebra printer and its Friendly name you had previously created. In this example, it would be COM5.

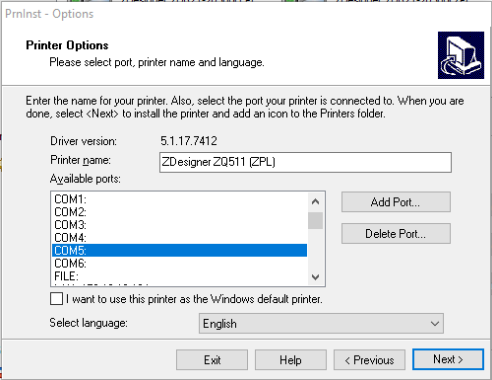

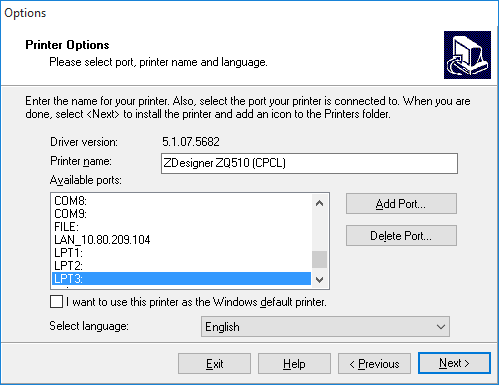

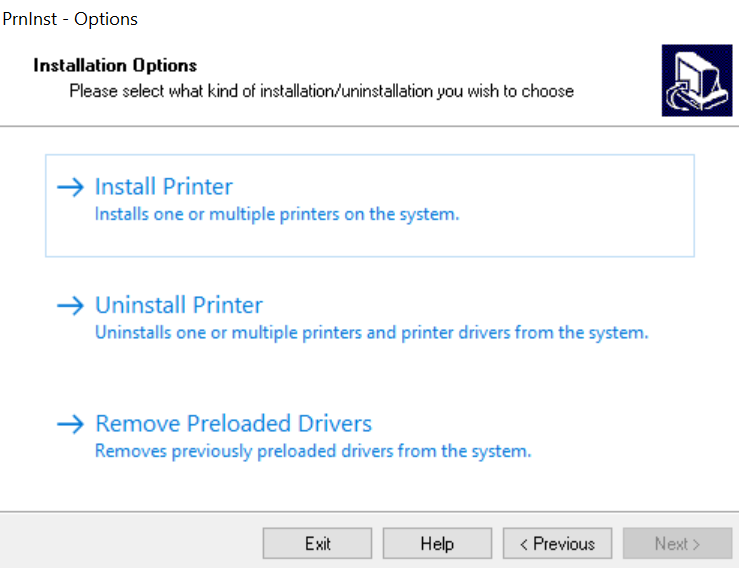

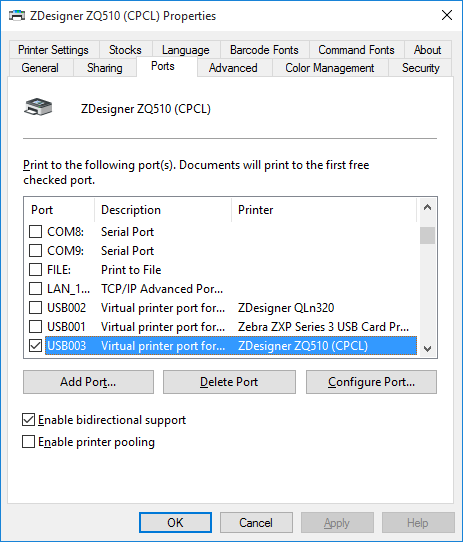

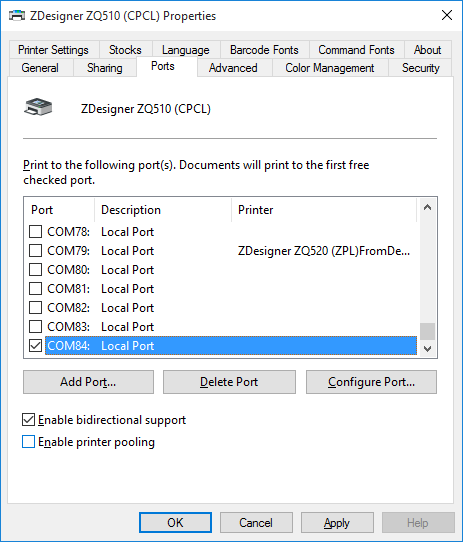

  1. At this point, you can install the printer either with ZDesigner Driver v5 or v10, just become sure to use the right port, COM5 in this example.
    User-added image

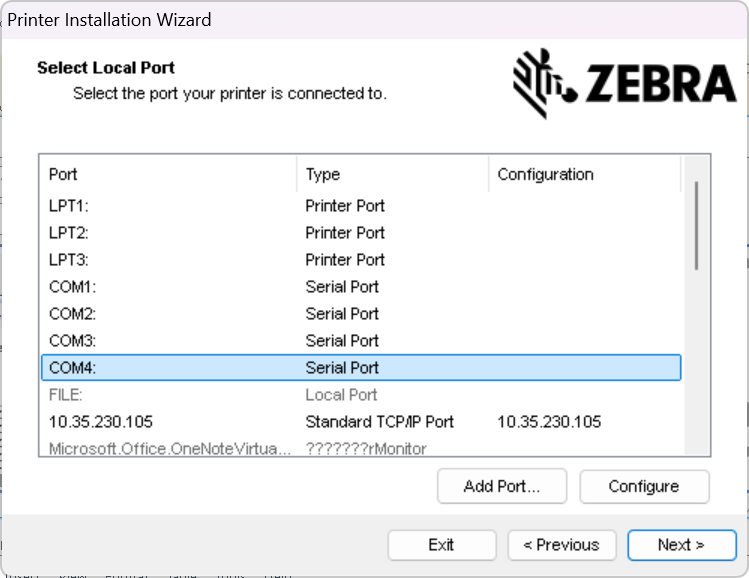

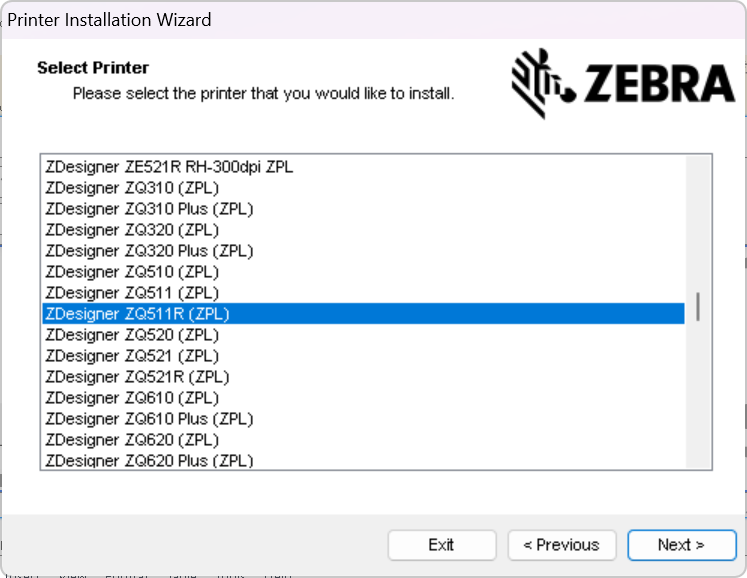

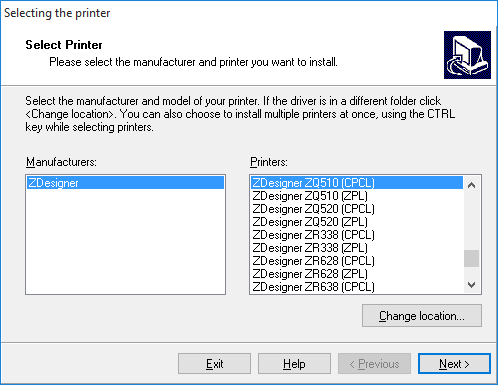

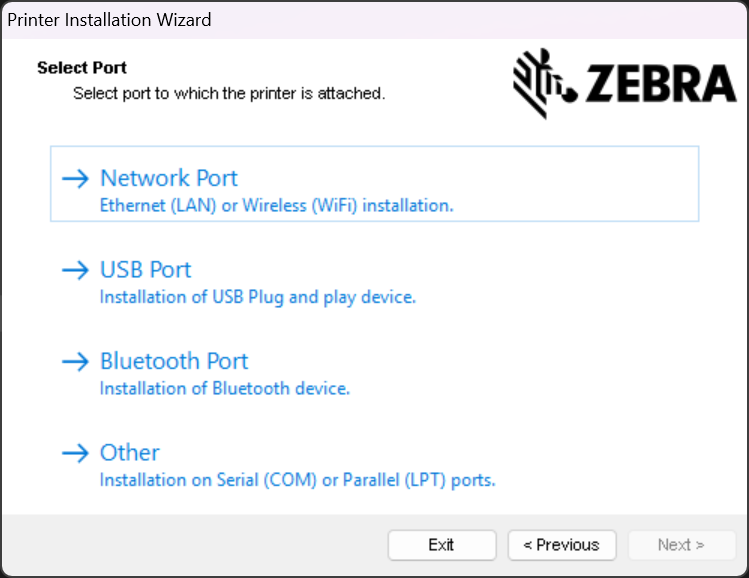

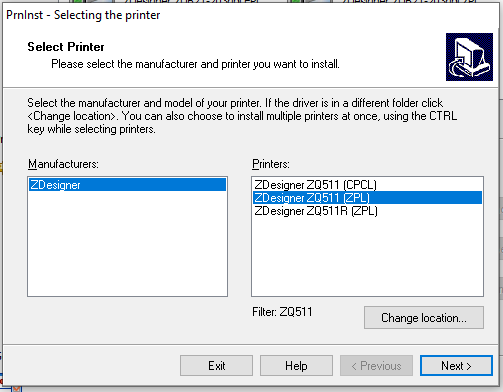

  1. When the ZDesigner Driver v10 is used, select the option "Other Port" to select the printer model and then the COM5 port.

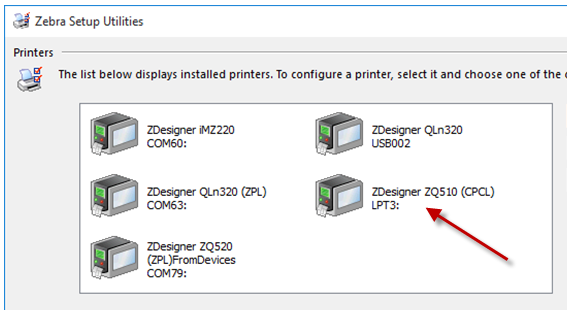

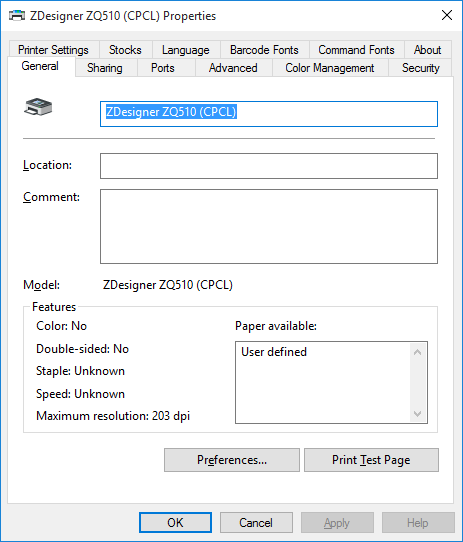

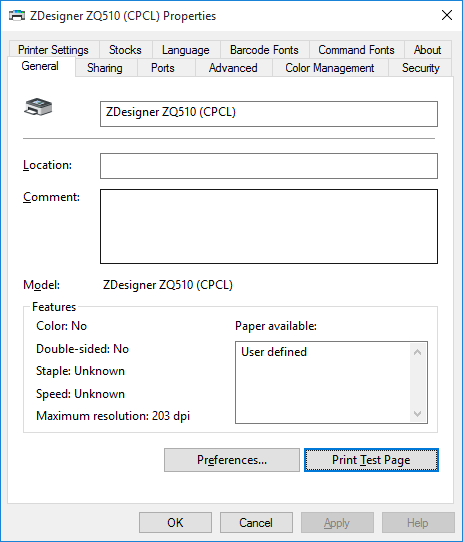

  1. With the correct port selected, a Test Page prints with no error message. If the correct Port is not available you cannot select a different COM port.

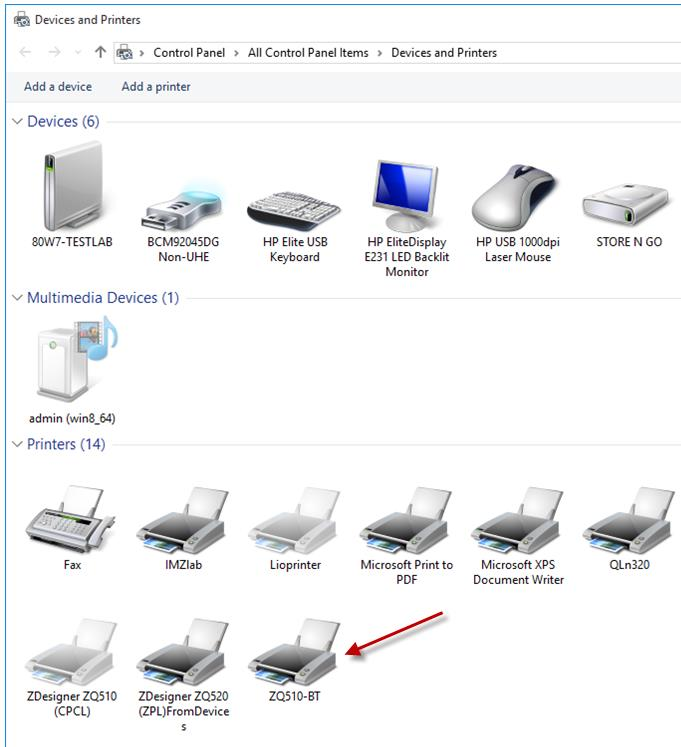

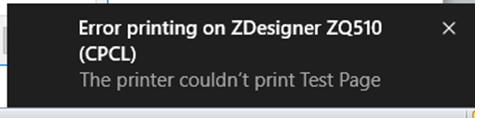

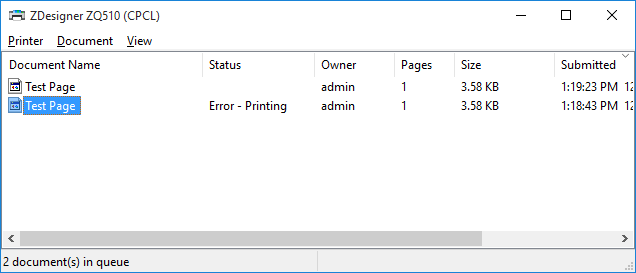

  2. When you attempt to print you will receive an Error printing from the operating system and from Devices and Printers.




  1. This means that your Windows 10 is missing a key update that corrected this Microsoft issue. These are suggested steps available from the internet to help with the task of updating your Windows 10 operating system.
  2. At this point, it is not a Zebra or the ZDesigner driver issue. This was a known MS operating system issue affecting all driver manufacturers that MS updates have resolved.

NOTE Ensure your mobile printer is not in sleep mode. Sending a job when the printer is in sleep mode, also results in a temporary Error Printing message from the operating system that is corrected as soon as the printer is powered back up.
