Issue / QuestionHow to convert and download a graphic to a zebra printer using Zebra Setup Utilities?
Applicable ToZDesigner Driver V5 supportable Zebra Printers (Excluding: ZQ110, EM220, EM220II), Zebra Setup Utility
Resolution / Answer

Overview


A graphic must be converted and downloaded to the printer before it can be printed on a label. You can use the Zebra Setup Utilities to convert and download graphics stored on a Zebra printer to be recalled later and printed on a label. The functionality built into the Zebra Setup Utilities is similar to Zebra Designer. For full details on downloading fonts and graphics, refer to the User Guide: ZebraDesigner Fonts and Graphics Downloader.


Procedure:

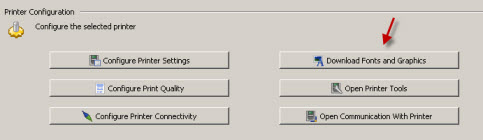

  1. Open the Zebra Setup Utilities, select your printer that Driver V.5 supportable only, and choose Download Fonts and Graphics

    User-added image
  2. From the Memory card slot drop-down list, choose the memory device on the printer where you want to store the font. The default is Flash memory.

The other options are DRAM, Memory Card, & Compact Flash

User-added image

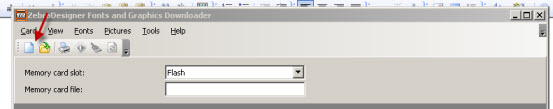

  1. To create a memory card configuration file, click the New icon:

    User-added image

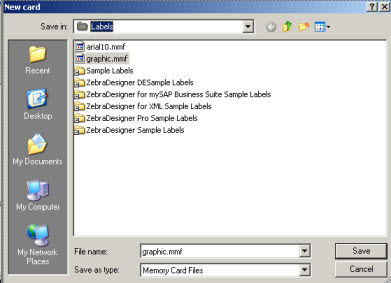

Now, you can create a new file or choose an existing one from your local hard drive. In this example, we created a card called a graphic.

User-added image


  1. After clicking Save, you will be prompted to set the Card size. The card size should be large enough to store the file. You can also provide a description (optional).

    User-added image
  2. Now, you can add the graphic. Select Pictures - Add, then browse to the file on your PC.

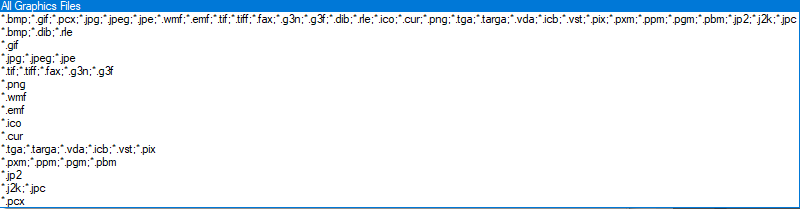

Here's a screenshot of the compatible graphic files:



  1. After clicking Open, you can download the graphic to the selected printer.

    User-added image

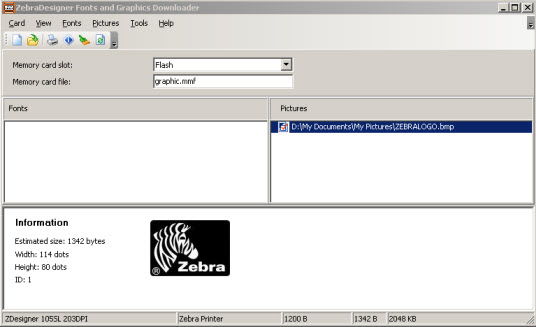

  2. When finished, the graphic will be listed under Pictures:

User-added image
The graphic file is saved in E:(Flash-User memory) of the printer.


NOTE If your printer has the driver v9.x installed, the Download Fonts and Graphics loads the V8's properties. Refer to:

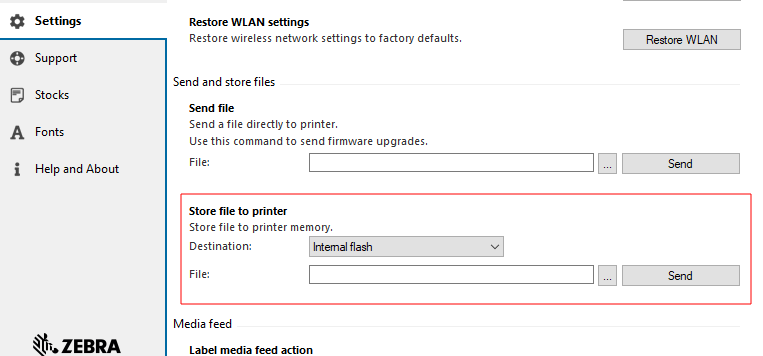

If you have a graphic file converted correctly, you can download it from the Store file to printer.
