Zebra Setup Utilities: Sending Files to a Printer

Printable View
« Go Back

Information


Issue / QuestionHow to send files using Zebra Setup Utilities (ZSU)?
What is the procedure for transferring files to Zebra printers?
How to troubleshoot file transfer issues in Zebra printers?
Applicable ToZebra Setup Utility (ZSU), Zebra Driver V5 and V8, All Zebra Printers excluding ZQ110, EM220, EM220II
Resolution / Answer

NOTE Download and install Zebra Setup Utility to your device from: Support and Downloads: Zebra Setup Utilities.



Overview

The Zebra Setup Utility can be used to send a file to the printer.


Procedure:


To send a file, perform the following steps:

  1. Open the Zebra Setup Utility.
  2. Select your printer from the Installed Printer List.

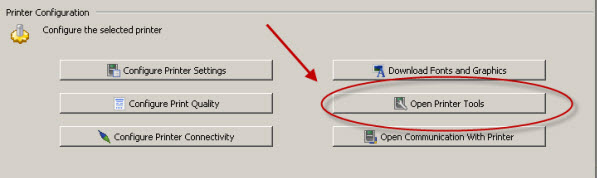

  3. Click Open Printer Tools.

User-added image


NOTE The option available on each screen may vary depending on the printer model and driver version.

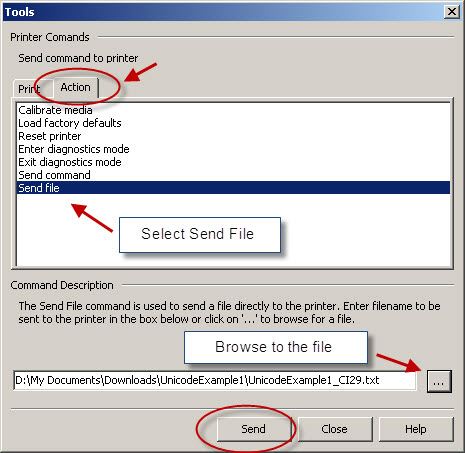

For Zebra Driver v5:

  1. Select the Action Tab.
  2. Select Send File.
  3. Browse the file you want to send to the printer.
  4. Select the Send button.

User-added image

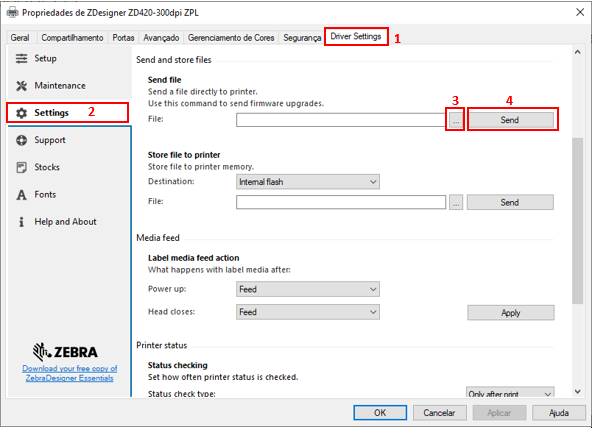

For Zebra Driver v8:


  1. Go to the Driver Settings tab.
  2. Click Settings.
  3. Locate the file.
  4. Click the Send button to send the file.


Helpful Information:

URL NameZebra-Setup-Utilities--Sending-Files-to-a-Printer
TitleZebra Setup Utilities: Sending Files to a Printer
